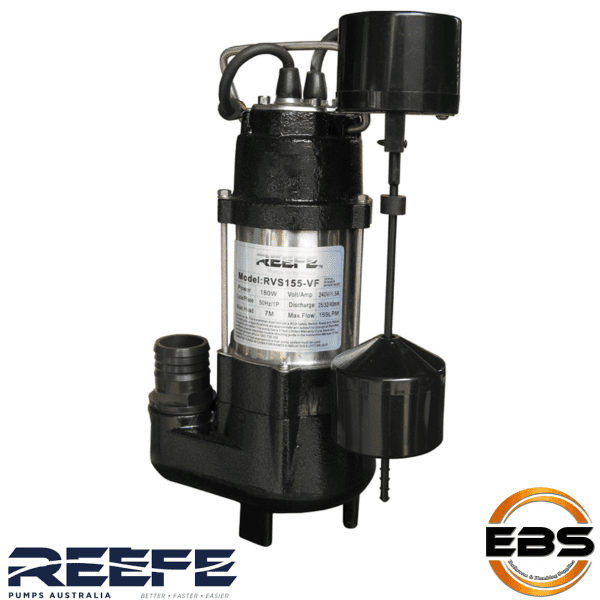

REEFE Vortex Vertical Float Pump RVS155VF

Features: Low power consumption Thermal overload protection Soft solids handling 15mm (155), 25mm(200),30mm(300) High performance H05RNF 10m power cable Includes hosetail Maximum liquid temperature 40°C Adjustable “stop” vertical float switch Electrical Safety Approval to AS/NZS 60335.2.41 Construction: Stainless steel motor housing & shaft Cast iron vortex impeller (RVS155VF – technopolymer impeller) Dual mechanical seal in oil chamber Cast iron base and outlet Minimum pit dimension 300mm sq (RVS155VF, RVS200VF, RVS250VF) Ingress Protection IP68 Insulation Class B – RVS155VF Insulation Class A – RVS200VF, RVS250VF & RVS300VF Applications: Wastewater treatment system Confined spaces Small or shallow pits / sumps Narrow irrigation chambers   Specifications: CODE 8416 MODEL RVS155VF AMPS 1.5 WATTS 180 RATED FLOW 90 L/min RATED HEAD 4m MAXIMUM FLOW 155 L/min MAXIMUM HEAD 7m SOFT SOLIDS 15mm OUTLET 32mm CABLE LENGTH 10m SIZE (mm) 220 x 190 x 350 WEIGHT 8.5 KG Downloads: Download Brochure Instruction Manual Contact us if you have any questions about delivery/installation of this product. Ph: 0450 275 327 Email: [email protected]
