CLL Series, Single Acting Lock Nut Hydraulic Cylinders

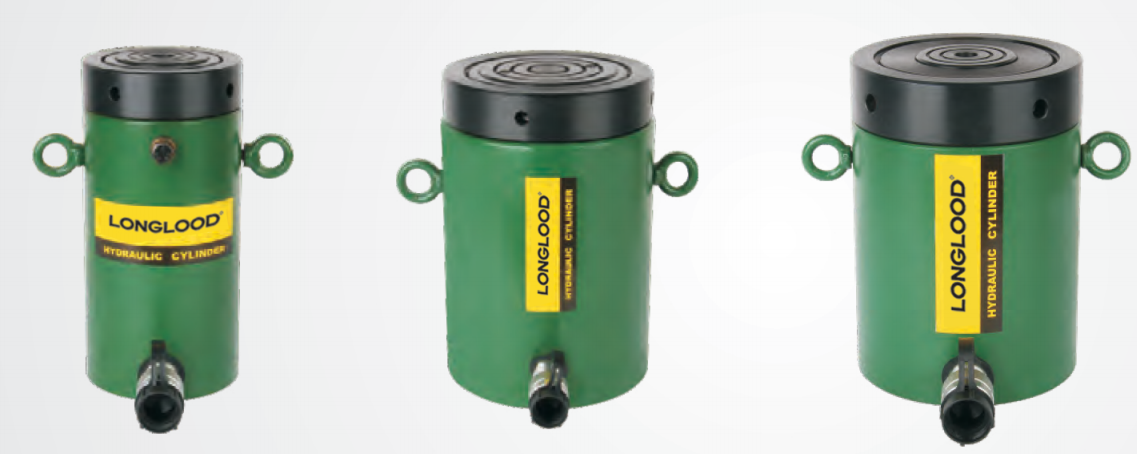

CLL Series, Single Acting Lock Nut Hydraulic Cylinders Single-Acting Cylinder Features: Single-Acting, Load Return: Efficient and reliable load return mechanism. Safety Lock Nut: Provides mechanical load holding for enhanced safety. Special Synthetic Coating: Improves corrosion resistance and reduces friction for smoother operation. Overflow Port: Functions as a stroke limiter to prevent overextension. Interchangeable, Hardened Grooved Saddles: Standard feature for versatility and durability. Capacity : 50- 1000 ton, Stroke: 50- 300 mm Max Operation Pressure: 700bar MODEL STROKE Cylinder Effective Area (cm2 ) Oil Capacity (cm3 ) Collapsed Height (mm) WEIGHT(KG) CLL-502 50 70.9 355 164 15 CLL-504 100 70.9 709 214 20 CLL-506 150 70.9 1064 264 25 CLL-508 200 70.9 1418 314 30 CLL-5010 250 70.9 1773 364 35 CLL-5012 300 70.9 2127 414 40 CLL-1002 50 132.7 664 187 30 CLL-1004 100 132.7 1327 237 39 CLL-1006 150 132.7 1991 287 48 CLL-1008 200 132.7 2654 337 56 CLL-10010 250 132.7 3318 387 64 CLL-10012 300 132.7 3981 437 73 CLL-1502 50 198.6 993 209 53 CLL-1504 100 198.6 1986 259 66 CLL-1506 150 198.6 2979 309 78 CLL-1508 200 198.6 3972 359 92 CLL-15010 250 198.6 4965 409 104 CLL-15012 300 198.6 5958 459 117 CLL-2002 50 265.6 1330 243 83 CLL-2006 150 265.6 3989 343 117 CLL-20012 300 265.6 7995 493 170 CLL-2502 50 366.1 1832 249 116 CLL-2506 150 366.1 5496 349 162 CLL-25012 300 366.1 10995 499 234 CLL-3002 50 456.2 2281 295 173 CLL-3006 150 456.2 6843 395 233 CLL-30012 300 456.2 13740 545 323 CLL-4002 50 559.9 2800 335 250 CLL-4006 150 559.9 8399 435 327 CLL-40012 300 559.9 16800 585 441 CLL-5002 50 731.1 3653 375 367 CLL-5006 150 731.1 10959 475 466 CLL-50012 300 731.1 21930 625 617 CLL-6002 50 854.8 4277 395 446 CLL-6006 150 854.8 12830 495 562 CLL-60012 300 854.8 25650 645 737 CLL-8002 50 1176.9 5882 455 709 CLL-8006 150 1176.9 17645 555 870 CLL-80012 300 1176.9 35370 705 1110 CLL-10002 50 1466.4 7329 495 949 CLL-10006 150 1466.4 21986 595 1141 CLL-100012 300 1466,4 43980 745 1430 CLL Cylinder Features: Bolt-On Removable Grooved Saddles: All CLL cylinders are equipped with these for easy replacement and versatility. Application of CLL Cylinders:   For this curved bridge project, CLL cylinders were utilized to: Support the concrete beams Level the pierhead Position 4000-ton slide bearings between the pier and pierhead After positioning the curved bridge, the CLL cylinders were mechanically locked to ensure stability.
