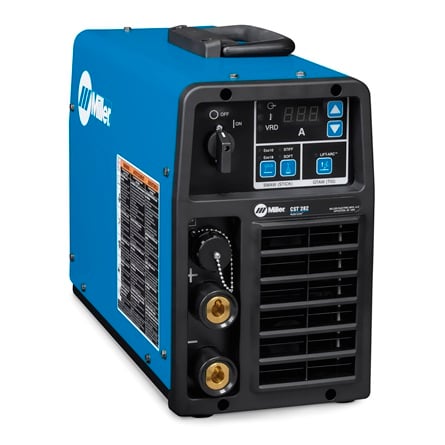

Miller CST™ 282 208-575V, Dinse Tig Welder

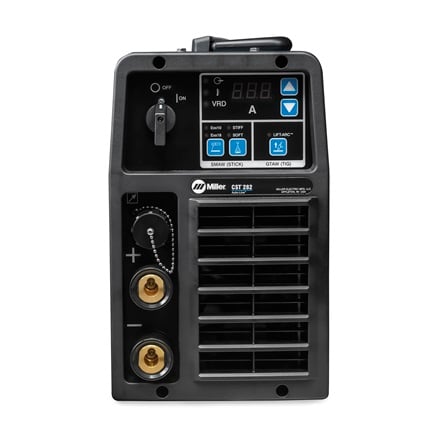

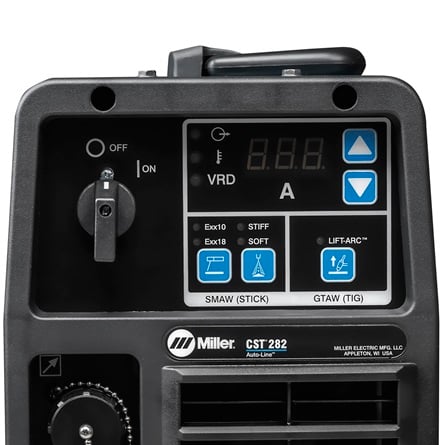

Features and BenefitsDocumentsSpecificationsFeatures and Benefits Welds Stick/TIG Superior stick arc performance with settings specifically designed for XX10 and XX18 electrodes and a stiff and soft setting for each. Whether welding pipe or in the flat there is a setting for each application. Auto-Line™ Technology Work in more places with Auto-Line technology which automatically calibrates the power source to operate properly when connected to any primary input voltage ranging from 208-575 volts, single- or three-phase, 50 or 60 Hz — with no manual linking required.   Learn More Portable Weighing only 34.6 pounds, the CST 282 is easily moved around a jobsite for increased operator comfort and safety. It is 7 pounds (20%) lighter than the previous CST model. Universal Connector System New Miller-exclusive universal output connector system can be used with either Tweco- or Dinse-style connectors. Welders can convert the machine from one connector style to another — without having to take the machine apart or deal with adapters. Simple & Accurate Interface Digital meter and push-button controls for more precise setting when presetting or monitoring welding amperage. Adaptive Hot Start™ Automatically makes starting stick electrodes easy without creating an inclusion. Lift-Arc™ Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high-frequency. Voltage Reducing Device VRD technology reduces output voltage when the operator isn’t welding, lowering the potential hazard from inadvertent contact with the electrode during non-welding pauses. 4 and 8 Pack Racks Rack mountable for protection, storage, and transportation of multiple power sources while using a single primary power cable. Documents Spec Sheet (ENG) Specifications PRODUCT LITERATURE DC/29.6 CST 282 – English PROCESSES Stick (SMAW) TIG DC (GTAW-DC) GENERAL SPECIFICATIONS Title CST™ 282 208-575V, Dinse Industries Interests Construction Infrastructure Shipbuilding Education / Training Maintenance and Repair – Field Operations Maintenance and Repair – In Plant Mechanical Contracting High Purity Processing Weldable Metals Specialty Metals Stainless Steel Steel Input Voltage 208 V 220/230/240 V 380/400/440 V 460/480 V 575 V Input Phase 1- and 3-Phase Input Hz 50/60 Hz Current Type DC Rated Output 280 A at 31.2 VDC, 35% duty cycle Max Open Circuit Voltage 103 VDC Portability Handle(s) Weld Output Stick: 30–280 A, TIG: 5–280 A Net Width 8 in Net Height 13.5 in Net Length 18.5 in Net Weight 34.6 lbs CERTIFICATIONS CSA Certificate of Compliance 80058319 SKU: 907810 Categories: Brands, Miller Electric, Stick Welding (SMAW) Brand: Miller
