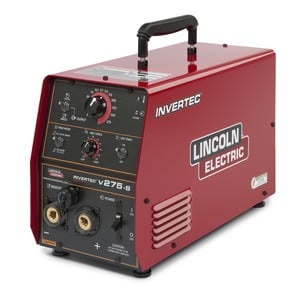

Lincoln Electric Invertec V276 (Tweco)

Features and BenefitsDocumentsSpecificationsWhat's IncludedFeatures and Benefits Weather-Resistant Stick and TIG Welder The Invertec® V275-S stick and TIG power source is ideal for outdoor construction sites–it’s IP23S rated and equipped with weather resistant features. Up to 275 amps of output gives you access to a greater number of stick electrodes, including outstanding E6010 performance. Outstanding AWS E6010 and E7018 performance – using up to 7/32 in. (5.5 mm) diameter electrode that enables both whip and drag techniques for a variety of construction and fabrication applications. Touch Start TIG® – allows the welding arc to be established without high frequency starting. Air carbon arc cutting and gouging – with up to 3/16 in. (4.8 mm) diameter carbon electrode. Selectable Hot Start – turn it off for thin material or flip it on for thick, rusty or dirty material. Variable Arc Force – dial in the “soft” or “crisp” arc you want. All-in-one machine – 208/220/230/380/400/415/440/460/575 input volt settings–no single phase de-rating. Documents Invertec V275-S (Tweco) Product Info Specifications INPUT POWER 208/230/380/415/460/575/1/3/50/60 RATED OUTPUT 275A/29-31V/35% 275A/31V/35% INPUT CURRENT 38/37/19/16 68/67/38/31 OUTPUT RANGE 5-275A DC DIMENSIONS (H X W X D) 13.6 in x 9 in x 20.25 in (345 mm x 229 mm x 514 mm) NET WEIGHT 54.00 (24.49 kg) What's Included Invertec® V275-S Input Power Cable, 10 ft. (3.0 m) SKU: K4868-1 Categories: Brands, Lincoln Electric, Stick Welding (SMAW) Brand: Lincoln Electric
